比较老的软件了，2006年发布的，主要用于老设备维护调试。建议安装到windows xp操作系统上，其他操作系统兼容性未知。
安装文件下载链接：
百度网盘下载链接.txt
(754 Bytes, 售价: 30 E币)
注意：请确保您所用的网络可以访问百度网盘并能熟练使用百度网盘下载文件，若附件内下载链接失效不能下载，可以回复本文留下邮箱给您发送可用链接。
1 V20 SP3 -> V22
With the V20 SP3 CD the disk space of a CD was exhausted.Therefore, as of V22 two CD’s are being provided:
Automation Toolkit CD
- EPAS-4 with project converter
- Documentation
Service CD
- Tools
- Firmware
1.1 New Functions
1.1.1 EPAS-4 / Test installation
As of V22 it is possible to install EPAS-4 as a test version.Was the present CD ordered as an Automation Toolkit EPAS-4, you will find the release code on the type plate of the CD cover.With the help of the release code, EPAS-4 can be activated without restrictions. Without the release code, all the functions of EPAS-4 are at your disposal for a test period of 90 days.With a valid release code, the test version can also be activated at a later date for an unrestrictive use (without reinstallation). For this,approach your ELAU contact person.
1.1.2 PacDrive BackUp
The Tool PacDrive BackUp (short "PD-BackUp") has been developed for an easy way of securing data on a controller without needing specific knowledge about the system.Such a securing (Image) is especially helpful if the current, run capable condition of a controller has to be saved before changes are done on the
system. Thereby, there is always the option to set the controller back to the previous saved condition.This is also important in case of service, if after a unit exchange the workshall be continued with the original configuration.
evEPAS-4CD_usV22_01b2906.doc
ELAU AG PacDrive Automation Toolkit EPAS-4 CD page 4
PD_R1 V20 SP3 -> V22
1.2 Modifications

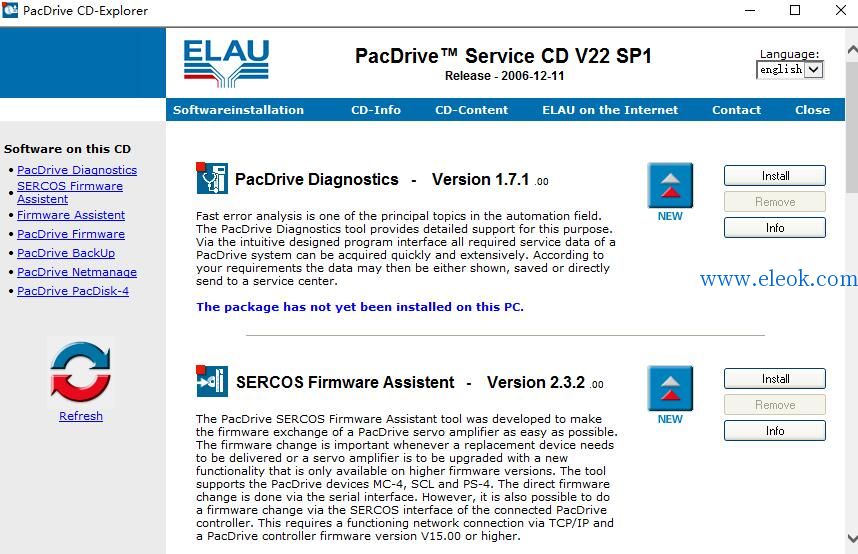

1.2.1 CD-Browser
The CD-Browser has been completely over-worked. Now the following
Setups can be called separately:
Automation Toolkit CD
- PacDrive EPAS-4
- PacDrive Documentation
- OPC-Server
Service CD
- PacDrive Diagnostics
- SERCOS Firmware Assistant
- Firmware Assistant
- PacDrive Firmware
- PacDrive BackUp
- PacDrive Netmanage
- PacDrive PacDisk-4
1.2.2 PC-Setups
The icons of the Tools, Documentation, Firmware etc. have been over-worked.
1.2.3 PacDrive EPAS-4
The version 00.22.01 b27 is now available.
The Online Help has been updated.
The IEC Library PacDriveTemplate V00.16.43 is now available.
The IEC Library SysCallback V00.21.00 is now available.
The IEC Library PacDriveLib V00.20.02 is now available.
The IEC Library PacDriveLib V00.16.43 is now available.
The IEC Library XML V00.16.32 is now available.
evEPAS-4CD_usV22_01b2906.doc
The IEC Library Trace V00.16.32 is now available.
The IEC Library System V00.22.00 is now available.
The IEC Library System V00.20.01 is now available.
The IEC Library ENIP V00.22.00 is now available.
ELAU AG PacDrive Automation Toolkit EPAS-4 CD page 5
PD_R
The EC Library PD_VIS V00.20.02 is now available.1 V20 SP3 -> V22
The IEC Library PD_RoboticModule_V00.20.00 is now available.
The IEC Library PD_Template_V00.20.02 is now available.
The IEC Library PD_Template_V00.20.01 is now available.
The IEC Library PD_Template_V00.20.00 is now available.
The IEC Library PD_TPC V00.20.02 is now available.
The IEC Library PD_TPC V00.20.01 is now available.
The IEC Library PD_TPC V00.20.00 is now available.
The IEC Library PD_TPD V00.20.02 is now available.
The IEC Library PD_TPD V00.20.01 is now available.
The IEC Library PD_TPD V00.20.00 is now available.
1.2.4 PacDrive Firmware
The following firmware versions are now available:
V00.22.03 for the Controller MAx-4, C200, C400 and C600
V00.22.00 for the Servo Drive MC-4
V00.22.00 for the amplifier SCL
V00.22.00 for Power Supply PS-4
1.2.5 PacDrive Tools
New versions of following Tools are on CD:
Automation Toolkit CD
- Project converter V3.0.1.0
Service CD
- PacDrive Diagnostics V1.6.1.0
- SERCOS Firmware Assistant V2.3.2.0
- Firmware Assistant V1.4.2.0
- PacDrive Netmanage V2.0.3.0
- PacDrive PacDisk-4 V4.0.1.0
1.2.6 Information System (Documentation)
The user manual Bus Terminal BT-4 has been extended with BT-4/ENC1 (DE).
evEPAS-4CD_usV22_01b2906.doc
The modifications for the firmware V22 have been inserted.
The modifications for the PC-Tools have been updated.
The Known Problem documents have been updated.
ELAU AG PacDrive Automation Toolkit EPAS-4 CD page 6
PD_R1 V20 SP3 -> V22
The Project Manual has been removed (DE, US, FR).
1.3 Restrictions
1.3.1 Information System (Documentation)
The English version of the user manual Bus Terminal BT-4 is notupdated yet.
1.3.2 EPAS-4 Online Help
The update of the English Online Help version is not yet completed.
