Multisim八路电子抢答器设计 带仿真图和实验报告

[复制链接]
eng 发表于 2021-8-4 00:26:23 | 显示全部楼层 |阅读模式
信息工程学院课程设计任务书
学 号
学生姓名
专业(班级)
设计题目基于Multisim的八路抢答器的设计与仿真
设计技术参数
8个可弹起按钮74LS148优先编码器D触发器作为锁存器电路七段显示数码管控制清零和工作的按钮

设计要求
1、电路抢答器可供不少于8名参赛选手使用2、每名参赛选手各有一个抢答按钮,在主持人用按钮清零,并发现抢答指令后,实行抢答3、电路配有LED数码显示,能显示优先抢答的选手编号,同时配有语音提示电路。4、数码显示和语音提示可由主持人用清除按钮解除;5、电路对参赛选手的动作先后有较强的分辨能力,如分辨率在15ms以内。
信息工程学院课程设计成绩评定表
摘 要
随着科学技术的不断发展,促使人们学科学、学技术、学知识的手段多种多样。抢答器作为一种工具,已广泛应用于各种智力和知识竞赛场合,当今的社会竞争日益激烈,选拔人才,评选优胜,知识竞赛之类的活动愈加频繁,那么也就必然离不开抢答器。因此抢答器是机关学校、电视台等单位开展智力竞赛活动必不可少的设备,通过抢答者的按键、数码显示等能准确、公正、直观地判断出优先抢答者。本产品采用了数字显示器直接指示,自动锁存显示结果,并自动复位的设计思想,由数字电路以及外围电路组成,分为八路抢答;在抢答同时附有声音输出接口,提示主持人此时已完成这次的抢答。
数字抢答由主体电路与扩展电路组成。主体电路包括两部分:一部分是优先编码电路、锁存器、译码电路将参赛队的输入信号在显示在LED上的输出电路;另一部的分式控制电路和报警电路。通过布线、调试等工作后抢答器成形。

Abstract
With the development of science and technology, promote learning science, scienceand technology, many kinds of means of knowledge diversity. Responder as a tool,has been widely used in all kinds of intelligence and knowledge competitionsoccasions, modern society increasingly fierce competition, talent, knowledge contestwinners, such activities become more frequent, then it certainly cannot do withoutresponder. So the responder organizations and schools, television stations and otherunits to carry out intelligence contest activities essential equipment, the responderbutton, the digital display can be accurately, justice, intuitive judgment preferredresponder. The product adopts the digital display direct instructions, automatic latchdisplay results, and design idea of automatic reset, composed of digital circuit and the external circuit, divided into eight road; in the answer at the same time with the sound output interface, indicating that the host at this time has been completed thisvies to answer.
Answer the number from the main circuit and expansion circuit. The main circuitconsists of two parts: one is the priority encoder circuit, latch, decoder circuit will be the team's input signal in the display output circuit on LED; fractional control circuit and an alarm circuit to another department. Through the wiring and commissioning work responder forming.

目  录
1 任务提出与方案论证
1.2 抢答器目前存在的主要问题
1.3抢答器的工作原理简介
1.4抢答器的工作过程
2总体设计
2.1总体设计框图
2.2工作流程框图

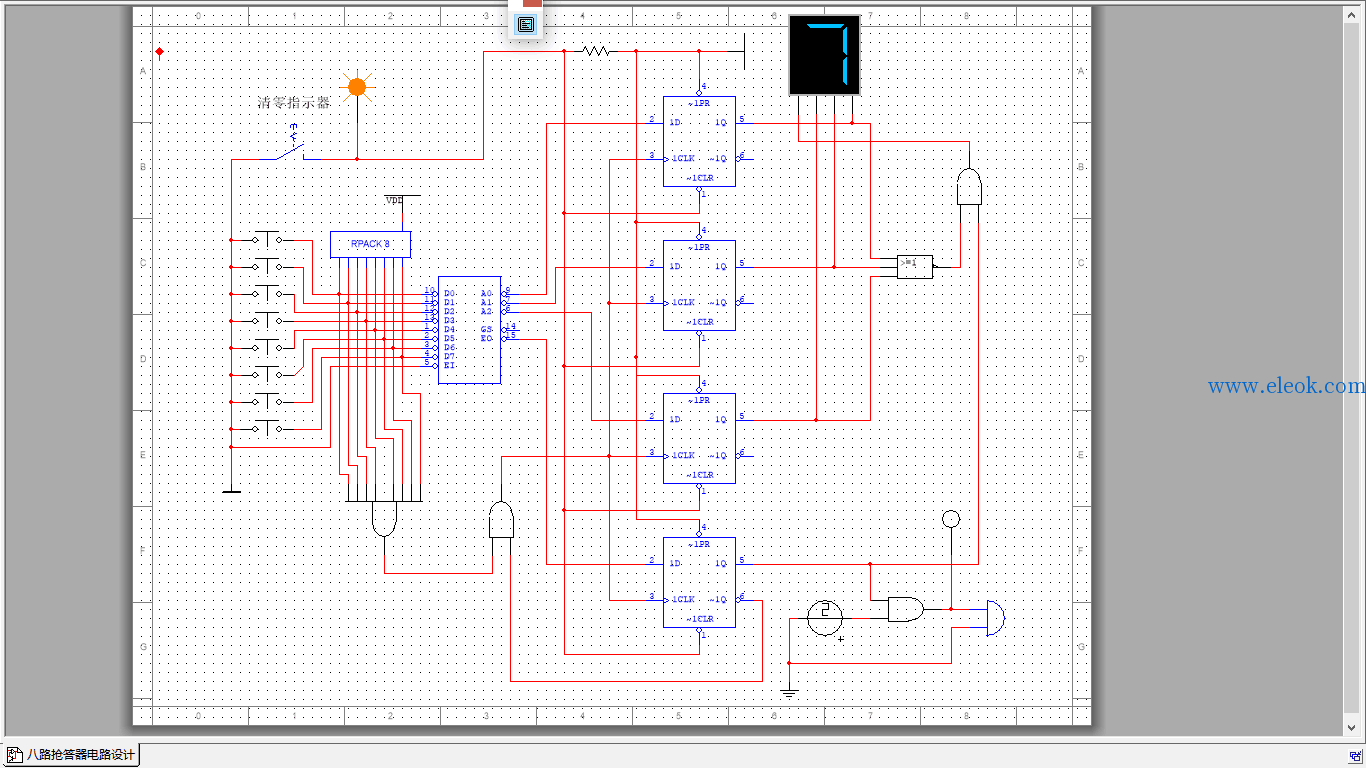

2.3整体电路图如下:
3详细设计及其仿真
3.1主要元器件功能介绍
3.1.1抢答按钮
3.1.2、优先编码电路
3.1.3、锁存器
3.1.4、数码显示器
3.1.5、主持人控制开关
3.1.6、控制电路
3.1.7、报警显示电路
3.2功能模块详解
3.3   显示模块:
4总结
参考文献
完整文档: 基于Multisim的八路抢答器的设计与仿真.doc (395 KB, 售价: 5 E币)
仿真文件: 基于Multisim的八路抢答器的设计与仿真源文件.zip (272.67 KB, 售价: 5 E币)
