51单片机LCD12864全屏显示图片程序+proteus仿真

[复制链接]
查看1 | 回复0 | 2021-4-25 12:34:07 | 显示全部楼层 |阅读模式

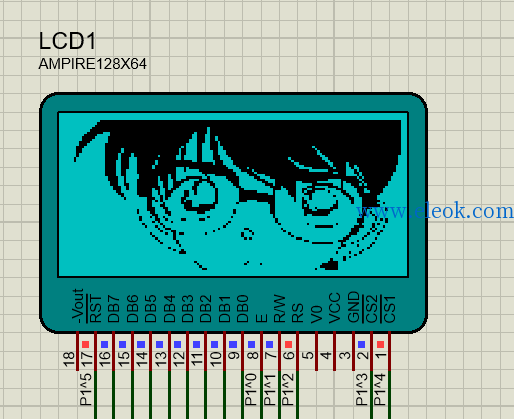

仿真原理图如下(proteus仿真工程文件可到本帖附件中下载)
部分源码:完整源码见附件
  1. #include <REGX52.H>
  2. #define uint unsigned int
  3. #define uchar unsigned char
  4. #define duan P0
  5. uchar code table1[][16] = {

  6. 0X00,0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0XE0,0XF0,0XF8,0X7C,0X3E,0X3F,0X1F,0X1F,
  7. 0X9F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  8. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  9. 0X3F,0X1F,0XFF,0XFF,0XFF,0X3F,0X07,0XFF,0XFF,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  10. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  11. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  12. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  13. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  14. 0X00,0X00,0X00,0X00,0XF8,0X3E,0X0F,0X07,0X03,0X01,0X00,0X00,0X00,0X00,0X00,0XFC,
  15. 0XFF,0XFF,0XFF,0XFF,0X3F,0XCF,0XFF,0XFF,0XFF,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  16. 0XFF,0XFF,0XFF,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X7F,0X0F,0XF7,0X7F,0X03,0X00,
  17. 0X00,0X00,0XFF,0XFF,0X03,0X00,0X00,0X1F,0XFF,0XFE,0X81,0X07,0X1F,0X7F,0XFF,0XFF,
  18. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  19. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XEF,
  20. 0X9F,0X3F,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
  21. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X7F,
  22. 0X00,0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,
  23. 0XFF,0XFF,0XFF,0X01,0X00,0XFF,0XFF,0X1F,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,
  24. 0XFF,0XE7,0XF9,0XFF,0XFF,0XFF,0XFF,0X7F,0XFF,0XFF,0X0E,0X0E,0X0F,0X3E,0X0E,0X1E,
  25. 0X1C,0X1C,0X1F,0X3F,0X7C,0XFC,0X7C,0X7C,0X79,0XFF,0XFF,0XFE,0XF8,0XF0,0XE0,0XE1,
  26. 0XC7,0X0F,0X1F,0X3F,0X3F,0X6F,0XFF,0XDF,0XBF,0X7F,0X7F,0X7F,0XFF,0XFF,0XFF,0XFF,
  27. 0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFD,0XFB,0XF3,0XE7,0XE7,0XEF,0XEF,0XCF,0XDF,0XDF,
  28. 0XDF,0XDF,0XDE,0XDC,0XF9,0XF3,0XAF,0XBF,0XFF,0XFF,0XFF,0X03,0X0F,0X1F,0X67,0XCF,
  29. 0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X3F,0X07,0X00,
  30. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  31. 0X03,0X0F,0X3F,0X7F,0XF0,0X80,0X0F,0X38,0X00,0X00,0X00,0XFE,0XFF,0XFF,0XFF,0XFF,
  32. 0XFF,0X1F,0X3F,0XF0,0X03,0X1F,0XFF,0XC0,0X61,0X3F,0X1C,0X0C,0X06,0XC2,0XC3,0X01,
  33. 0X31,0XFD,0X0D,0X07,0X02,0X02,0X07,0X0C,0X18,0XE0,0X00,0X00,0X00,0X01,0X03,0X07,
  34. 0X0F,0X1F,0XF0,0XE0,0XC0,0XC0,0XC0,0XC0,0XC1,0X83,0X82,0X86,0X8C,0X08,0X19,0XF1,
  35. 0X3F,0X3F,0X0F,0X1F,0X3F,0XFF,0XFF,0XFF,0X03,0X03,0X67,0XA7,0XD7,0XD7,0X7F,0X2F,
  36. 0X2B,0X2B,0X2B,0X0B,0X59,0X19,0X11,0X31,0X21,0X7F,0XC3,0X87,0X07,0X0F,0X1F,0X7E,
  37. 0XF5,0XFA,0X97,0XBF,0XFF,0XFF,0XFF,0XFF,0X7F,0X1F,0X0F,0X03,0X00,0X00,0X00,0X00,
  38. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  39. 0X00,0X00,0X00,0X00,0X00,0X01,0X02,0X00,0X00,0X00,0X00,0XC0,0X01,0X01,0X01,0X7F,
  40. 0XFF,0XE2,0X04,0X00,0X17,0X38,0XE3,0X81,0X00,0X00,0X00,0X00,0X0E,0X3B,0X7D,0X7C,
  41. 0X60,0X60,0XE0,0XF0,0XF0,0X70,0X70,0X30,0X38,0X0F,0X00,0X00,0X00,0X00,0X00,0X00,
  42. 0XC0,0X08,0X07,0X07,0X07,0X03,0X03,0X03,0X03,0X07,0X07,0X07,0X07,0X0F,0XFF,0XFF,
  43. 0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X07,0X00,0X00,0X3E,0XEC,0XF0,0XC3,0X80,0XA0,
  44. 0XC0,0XC0,0XC0,0XC0,0XC0,0X60,0X31,0X3C,0X00,0X00,0X00,0X01,0X03,0X0E,0X00,0X00,
  45. 0X01,0XFF,0XFF,0X3F,0XBF,0X1F,0X1F,0X14,0X00,0X08,0X60,0X00,0X00,0X00,0X00,0X00,
  46. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  47. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X06,0X10,0X20,0X00,
  48. 0X02,0X09,0X27,0X4C,0X90,0X22,0X44,0X41,0X88,0X80,0X00,0X00,0X04,0X04,0X00,0X00,
  49. 0X00,0X00,0X00,0X04,0X04,0X00,0X02,0X00,0X80,0X00,0X40,0X00,0X20,0X10,0X08,0X02,
  50. 0X00,0X00,0X00,0X00,0X40,0X40,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
  51. 0X0C,0X10,0X40,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X10,0X00,0X01,0X21,
  52. 0X21,0X21,0X21,0X21,0X20,0X20,0X00,0X10,0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,0XEC,
  53. 0X3D,0X2F,0X01,0X00,0X40,0XB1,0X46,0X10,0X84,0X20,0X0C,0X00,0X00,0X00,0X00,0X00,
  54. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  55. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  56. 0X01,0X02,0X04,0X08,0X10,0X00,0X01,0X40,0X00,0X87,0X18,0X21,0X81,0X00,0X00,0X00,
  57. 0X00,0X00,0X00,0X00,0X00,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  58. 0X00,0X00,0X00,0X03,0X04,0X00,0X04,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  59. 0X00,0X00,0X00,0X00,0X00,0X01,0X02,0X00,0X04,0X04,0X00,0X08,0X08,0X00,0X10,0X10,
  60. 0X10,0X10,0X10,0X10,0X10,0X10,0X00,0X00,0X48,0X38,0X2C,0X06,0X03,0X11,0X01,0X28,
  61. 0X00,0X84,0X02,0X41,0X20,0X10,0X04,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  62. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  63. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  64. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X01,0X01,0X00,0X00,
  65. 0X00,0X10,0X20,0X40,0X80,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  66. 0X00,0X00,0X00,0X00,0X20,0X10,0X00,0X00,0X00,0X00,0X20,0X00,0X00,0X00,0X00,0X00,
  67. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,
  68. 0X00,0X40,0X60,0XE0,0XF0,0XF8,0XF0,0XF1,0X00,0X00,0X0C,0X00,0X05,0X00,0X02,0X00,
  69. 0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  70. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  71. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  72. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X40,0X20,0X20,0X00,0X00,0X10,0X00,0X00,0X08,
  73. 0X08,0X08,0XF0,0X10,0X04,0X20,0X21,0X4A,0X00,0X84,0X00,0X08,0X10,0X30,0X20,0X60,
  74. 0X40,0X00,0X80,0X80,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0X80,0X80,0X00,0X40,0X40,
  75. 0X40,0XA0,0XA0,0X10,0X10,0X20,0X08,0X10,0X04,0X0C,0X42,0X26,0X12,0X05,0X02,0X02,
  76. 0X08,0X28,0X90,0X40,0X01,0X03,0X03,0X07,0X0F,0X10,0X00,0X00,0X00,0X00,0X00,0X00,
  77. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  78. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  79. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X20,
  80. 0X10,0X00,0X80,0X10,0X07,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  81. 0X80,0X40,0X17,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X61,0XC0,0XC0,0X80,0X00,
  82. 0X20,0X30,0X04,0X28,0X30,0X00,0X84,0X84,0X40,0X00,0X22,0X22,0X00,0X10,0X11,0X11,
  83. 0X00,0X00,0X00,0X40,0X20,0X10,0X08,0X04,0X01,0X01,0X00,0X00,0X00,0X00,0X00,0X00,
  84. 0X00,0X00,0X00,0XC2,0X29,0X30,0X18,0X10,0X50,0X00,0XA0,0X40,0X40,0X80,0X00,0X00,
  85. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  86. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  87. 0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X02,0X00,0X00,
  88. 0X00,0X00,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X02,
  89. 0X01,0X00,0X02,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X03,0X00,0X00,
  90. 0X00,0X00,0X00,0X06,0X07,0X07,0X05,0X04,0X04,0X04,0X02,0X00,0X00,0X00,0X00,0X00,
  91. 0X04,0X02,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  92. 0X00,0X00,0X04,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X00,0X02,0X01,
  93. 0X04,0X02,0X04,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
  94. };



  95. uchar code table[]={0x3f,0x40,0x80,0xb8,0xc0};



  96. sbit e=P1^0;
  97. sbit rw=P1^1;
  98. sbit rs=P1^2;
  99. sbit cs2=P1^3;
  100. sbit cs1=P1^4;
  101. sbit rst=P1^5;

  102. void delay500us(uint xus)
  103. {
  104.         uint i;uchar j;
  105.         for(i=xus;i>0;i--)
  106.                 for(j=55;j>0;j--);
  107. }
  108. void zllift(uchar zl)  //左lift
  109. {
  110.         cs1=0;cs2=1;
  111.         rw=0;
  112.         rs=0;
  113.         duan=zl;
  114.         delay500us(1);
  115.         e=1;
  116.         delay500us(2);
  117.         e=0;

  118. }

  119. void zlright(uchar zl)
  120. {
  121.         cs1=1;cs2=0;
  122.         rw=0;
  123.         rs=0;
  124.         duan=zl;
  125.         delay500us(1);
  126.         e=1;
  127.         delay500us(2);
  128.         e=0;

  129. }

  130. void sjlift(uchar sj)
  131. {
  132.         cs1=0;cs2=1;   /////////////////////
  133.         rw=0;
  134.         rs=1;
  135.         duan=sj;
  136.         delay500us(1);
  137.         e=1;
  138.         delay500us(2);
  139.         e=0;

  140. }
